Description

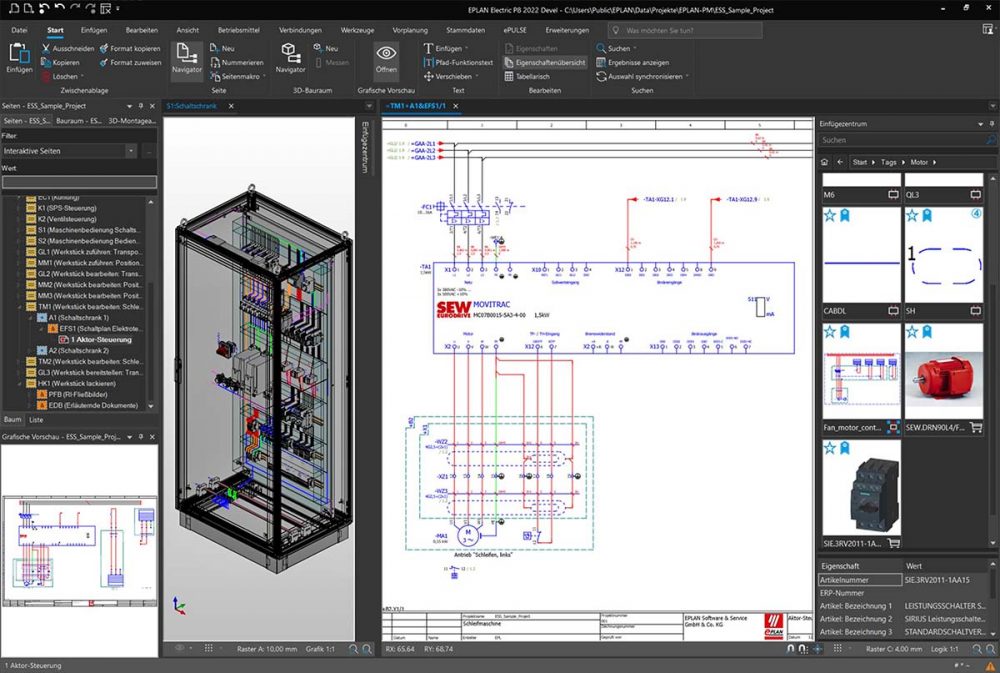

Learn how to design electrical and industrial panels using EPLAN software. Learn how to create advanced circuit diagrams with PLCs, circuit breakers, contactors, electric motors, etc. This bundle includes eight courses in a total duration of 9 hours 32 mins.
This bundle includes the following courses. Click on each course to see the details:

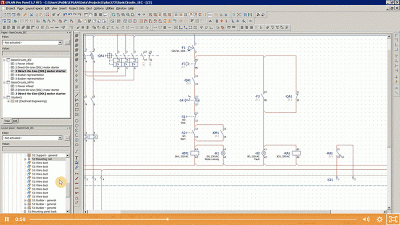

Electrical Panel Design in EPLAN: Pilot Devices from Allen Bradley
Learn how to plan and design pilot devices such as emergency stop pushbutton, selector switch, pilot lights, twin pushbutton, etc. for various industrial panels using EPLAN. 7 lessons in 54 min. total course time.
Electrical Panel Design in EPLAN: Wiring And Busbars
Learn important components inside electrical cabinets, particularly wiring (conductors) and busbars systems (60mm). The course is real-life oriented and it includes 119 photos of electrical cabinets from international projects. 11 lessons in 52m total course length.

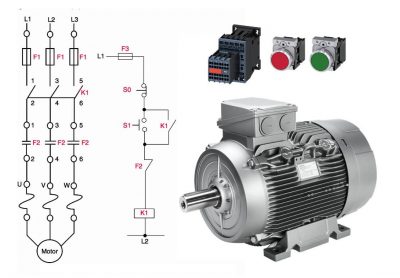

Electrical Panel Design in EPLAN: Motor Direct-On-Line (DOL) Starter
Learn in-depth to design and implement the most common motor starter for industrial automation applications – the Direct On-line (DOL) Motor Starter. The complete circuit diagram and circuit components are included. 6 lessons in 1-hour total course length.

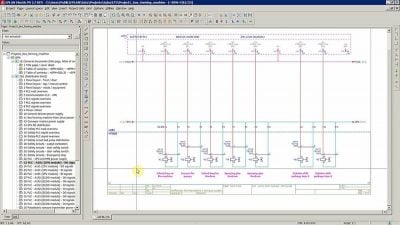

Electrical Design of an Industrial Packaging Machine
Master electrical design of industrial automation systems - packaging machine (wiring diagram and PLC (S7-1200) analysis - I/O signals explanation). 6 lessons in 46m total course length.

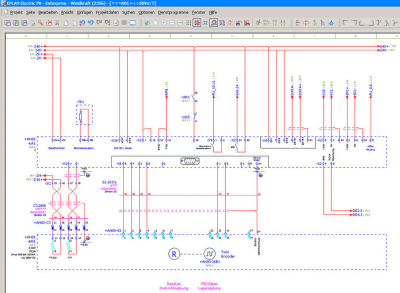

Electrical Panel Design in EPLAN: Custom Symbols, Tips and Tricks
Master your electrical design skill in EPLAN by learning symbol libraries management, custom symbols, layer management, and functions that will help you to work more efficiently. 11 lessons in 1h 3m total course length.
Electrical Panel Design in EPLAN: The Essentials For Beginners
Learn the basics of EPLAN, the essential functions, and sections to be able to create decent circuit diagrams with PLCs, circuit breakers, contactors, electric motors, etc. 16 lessons in 2h 40m total course length.

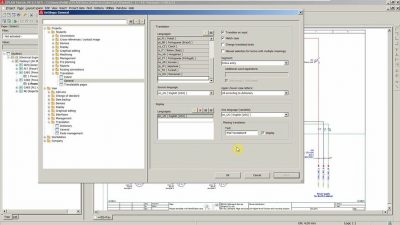

Electrical Panel Design in EPLAN: Translation for Multilingual Projects
Learn everything that is to know about the Translation Module in EPLAN with a practical example of an international project. 6 lessons in 55m total course length.
Electrical Panel Design in EPLAN: Setting Up NFPA Project and Circuit Diagrams
Learn to set up your EPLAN project to work and create circuit diagrams according to the NFPA standard. 11 lessons in 1h 22m total course length.
